嵌入式分析 SDK - 常见问题
嵌入式分析 SDK 仅适用于 Pro 版和 Enterprise 版计划(包括自托管版和 Metabase 云版)。不过,您可以通过使用 API 密钥验证您的嵌入来在本地机器上无许可证地试用 SDK。
有几种不同的方式可以嵌入问题
嵌入问题
您可以使用以下问题组件之一嵌入问题

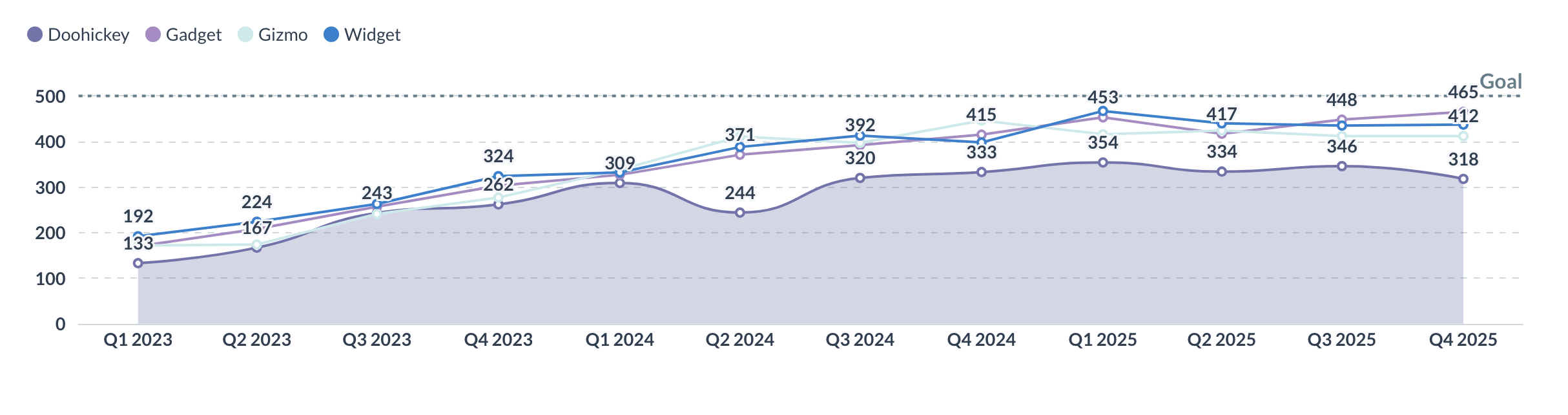

StaticQuestion
一个轻量级的问题组件。当您只想显示结果而不允许人们与数据交互时,请使用此组件。
该组件具有默认高度,可以通过使用 height
属性进行自定义。要从父容器继承高度,您可以将 100%
传递给 height
属性。
API 参考
示例
import React from "react";
import {
MetabaseProvider,
StaticQuestion,
defineMetabaseAuthConfig,
} from "@metabase/embedding-sdk-react";
const authConfig = defineMetabaseAuthConfig({
metabaseInstanceUrl: "https://your-metabase.example.com",
});
export default function App() {
const questionId = 1; // This is the question ID you want to embed
return (
<MetabaseProvider authConfig={authConfig}>
<StaticQuestion questionId={questionId} withChartTypeSelector={false} />
</MetabaseProvider>
);
}
属性
属性 | 类型 | 描述 |
---|---|---|
className? |
字符串 |
要添加到根元素的自定义类名。 |
height? |
Height <string | number > |
指定组件高度的 CSS 尺寸值的数字或字符串 |
initialSqlParameters? |
SqlParameterValues |
SQL 参数的初始值。 |
questionId |
null | SdkQuestionId |
问题的 ID。 这可以是 - 访问问题链接时的数字 ID,例如 http://localhost:3000/question/1-my-question ,其中 ID 为 1 - 问题对象的 entity_id 键。您可以在查看问题时在信息面板中找到问题的实体 ID- new 用于显示笔记本编辑器以创建新问题。isSaveEnabled 必须为 true 才能允许保存问题 |
style? |
CSSProperties |
要添加到根元素的自定义样式对象。 |
width? |
Width <string | number > |
指定组件宽度的 CSS 尺寸值的数字或字符串 |
withChartTypeSelector? |
布尔值 |
- |
InteractiveQuestion
当您希望允许人们探索其数据并自定义问题布局时,请使用此组件。
API 参考
示例
import React from "react";
import {
InteractiveQuestion,
MetabaseProvider,
defineMetabaseAuthConfig,
} from "@metabase/embedding-sdk-react";
const authConfig = defineMetabaseAuthConfig({
metabaseInstanceUrl: "https://your-metabase.example.com",
});
export default function App() {
const questionId = 1; // This is the question ID you want to embed
return (
<MetabaseProvider authConfig={authConfig}>
<InteractiveQuestion questionId={questionId} />
</MetabaseProvider>
);
}
属性
属性 | 类型 | 描述 |
---|---|---|
children? |
ReactNode |
MetabaseProvider 组件的子元素。 |
className? |
字符串 |
要添加到根元素的自定义类名。 |
entityTypes? |
EmbeddingEntityType [] |
一个数组,指定数据选择器中可用的实体类型 |
height? |
Height <string | number > |
指定组件高度的 CSS 尺寸值的数字或字符串 |
initialSqlParameters? |
SqlParameterValues |
SQL 参数的初始值。 |
isSaveEnabled? |
布尔值 |
是否显示保存按钮。 |
onBeforeSave? |
(question : undefined | MetabaseQuestion , context : { isNewQuestion : boolean ; }) => Promise <void > |
在保存之前触发的回调函数。仅当 isSaveEnabled = true 时相关 |
onRun? |
(question : undefined | MetabaseQuestion ) => void |
当问题更新时(包括用户在问题编辑器中点击 Visualize 按钮时)触发的回调函数 |
onSave? |
(question : undefined | MetabaseQuestion , context : { isNewQuestion : boolean ; }) => void |
当用户保存问题时触发的回调函数。仅当 isSaveEnabled = true 时相关 |
plugins? |
MetabasePluginsConfig |
- |
questionId |
null | SdkQuestionId |
问题的 ID。 这可以是 - 访问问题链接时的数字 ID,例如 http://localhost:3000/question/1-my-question ,其中 ID 为 1 - 问题对象的 entity_id 键。您可以在查看问题时在信息面板中找到问题的实体 ID- new 用于显示笔记本编辑器以创建新问题。isSaveEnabled 必须为 true 才能允许保存问题 |
style? |
CSSProperties |
要添加到根元素的自定义样式对象。 |
targetCollection? |
SdkCollectionId |
保存问题的集合。这将从保存模式中隐藏集合选择器。仅适用于交互式问题。 |
title? |
SdkQuestionTitleProps |
确定是否显示问题标题,并允许显示自定义标题而非默认问题标题。默认显示。仅在使用默认布局时适用于交互式问题。 |
width? |
Width <string | number > |
指定组件宽度的 CSS 尺寸值的数字或字符串 |
withChartTypeSelector? |
布尔值 |
确定是否显示图表类型选择器和相应的设置按钮。仅在使用默认布局时相关。 |
withDownloads? |
布尔值 |
启用在交互式问题中下载结果的功能。 |
withResetButton? |
布尔值 |
确定是否显示重置按钮。仅在使用默认布局时相关。 |
使用 initialSqlParameters
将 SQL 参数传递给 SQL 问题
您可以通过 initialSqlParameters
属性,以 {parameter_name: parameter_value}
的格式向使用 SQL 定义的问题传递参数值。了解更多关于 SQL 参数 的信息。
<StaticQuestion
questionId={questionId}
initialSqlParameters={{ product_id: 50 }}
/>
initialSqlParameters
不能与使用查询构建器构建的问题一起使用。
自定义交互式问题
默认情况下,嵌入式分析 SDK 为交互式问题提供了一个默认布局,允许您查看问题、应用筛选器和聚合,并访问查询构建器中的功能。
以下是使用 InteractiveQuestion
组件及其默认布局的示例
<InteractiveQuestion questionId={95} />
要自定义布局,请在 InteractiveQuestion
组件中使用命名空间组件。例如
<div
className="App"
style={{
width: "100%",
maxWidth: "1600px",
height: "800px",
margin: "0 auto",
}}
>
<MetabaseProvider authConfig={authConfig} theme={theme}>
<InteractiveQuestion questionId={95}>
<div
style={{
display: "flex",
flexDirection: "column",
alignItems: "center",
justifyContent: "center",
width: "100%",
}}
>
<div style={{ display: "grid", placeItems: "center", width: "100%" }}>
<InteractiveQuestion.Title />
<InteractiveQuestion.ResetButton />
</div>
<div
style={{
display: "flex",
alignItems: "center",
justifyContent: "flex-start",
overflow: "hidden",
width: "100%",
}}
>
<div style={{ width: "100%" }}>
<InteractiveQuestion.QuestionVisualization />
</div>
<div style={{ display: "flex", flex: 1, overflow: "scroll" }}>
<InteractiveQuestion.Summarize />
</div>
</div>
<div
style={{ display: "flex", flexDirection: "column", width: "100%" }}
>
<InteractiveQuestion.Filter />
</div>
</div>
</InteractiveQuestion>
</MetabaseProvider>
</div>
交互式问题组件
这些组件可通过 InteractiveQuestion
命名空间访问(例如,<InteractiveQuestion.Filter />
)。
API 参考
- InteractiveQuestion.BackButton
- InteractiveQuestion.Breakout
- InteractiveQuestion.BreakoutDropdown
- InteractiveQuestion.ChartTypeDropdown
- InteractiveQuestion.ChartTypeSelector
- InteractiveQuestion.Editor
- InteractiveQuestion.EditorButton
- InteractiveQuestion.Filter
- InteractiveQuestion.FilterDropdown
- InteractiveQuestion.QuestionSettings
- InteractiveQuestion.QuestionSettingsDropdown
- InteractiveQuestion.QuestionVisualization
- InteractiveQuestion.ResetButton
- InteractiveQuestion.SaveButton
- InteractiveQuestion.SaveQuestionForm
- InteractiveQuestion.Summarize
- InteractiveQuestion.SummarizeDropdown
- InteractiveQuestion.DownloadWidget
- InteractiveQuestion.DownloadWidgetDropdown
- InteractiveQuestion.Title
交互式问题插件
您可以使用插件为问题添加自定义功能。
mapQuestionClickActions
此插件允许您向交互式问题的点击菜单添加自定义操作。您可以添加和自定义自定义操作的外观和行为。
// You can provide a custom action with your own `onClick` logic.
const createCustomAction = clicked => ({
buttonType: "horizontal",
name: "client-custom-action",
section: "custom",
type: "custom",
icon: "chevronright",
title: "Hello from the click app!!!",
onClick: ({ closePopover }) => {
alert(`Clicked ${clicked.column?.name}: ${clicked.value}`);
closePopover();
},
});
// Or customize the appearance of the custom action to suit your need.
const createCustomActionWithView = clicked => ({
name: "client-custom-action-2",
section: "custom",
type: "custom",
view: ({ closePopover }) => (
<button
className="tw-text-base tw-text-yellow-900 tw-bg-slate-400 tw-rounded-lg"
onClick={() => {
alert(`Clicked ${clicked.column?.name}: ${clicked.value}`);
closePopover();
}}
>
Custom element
</button>
),
});
const plugins = {
/**
* You will have access to default `clickActions` that Metabase renders by default.
* So you could decide if you want to add custom actions, remove certain actions, etc.
*/
mapQuestionClickActions: (clickActions, clicked) => {
return [
...clickActions,
createCustomAction(clicked),
createCustomActionWithView(clicked),
];
},
};
const questionId = 1; // This is the question ID you want to embed
return (
<MetabaseProvider authConfig={authConfig} pluginsConfig={plugins}>
<InteractiveQuestion questionId={questionId} />
</MetabaseProvider>
);
阻止用户保存对 InteractiveQuestion
的更改
为了防止用户保存对交互式问题的更改,或将其保存为新问题,您可以设置 isSaveEnabled={false}
import React from "react";
import {
InteractiveQuestion,
MetabaseProvider,
defineMetabaseAuthConfig,
} from "@metabase/embedding-sdk-react";
const authConfig = defineMetabaseAuthConfig({
metabaseInstanceUrl: "https://your-metabase.example.com",
});
export default function App() {
return (
<MetabaseProvider authConfig={authConfig}>
<InteractiveQuestion questionId={1} isSaveEnabled={false} />
</MetabaseProvider>
);
}

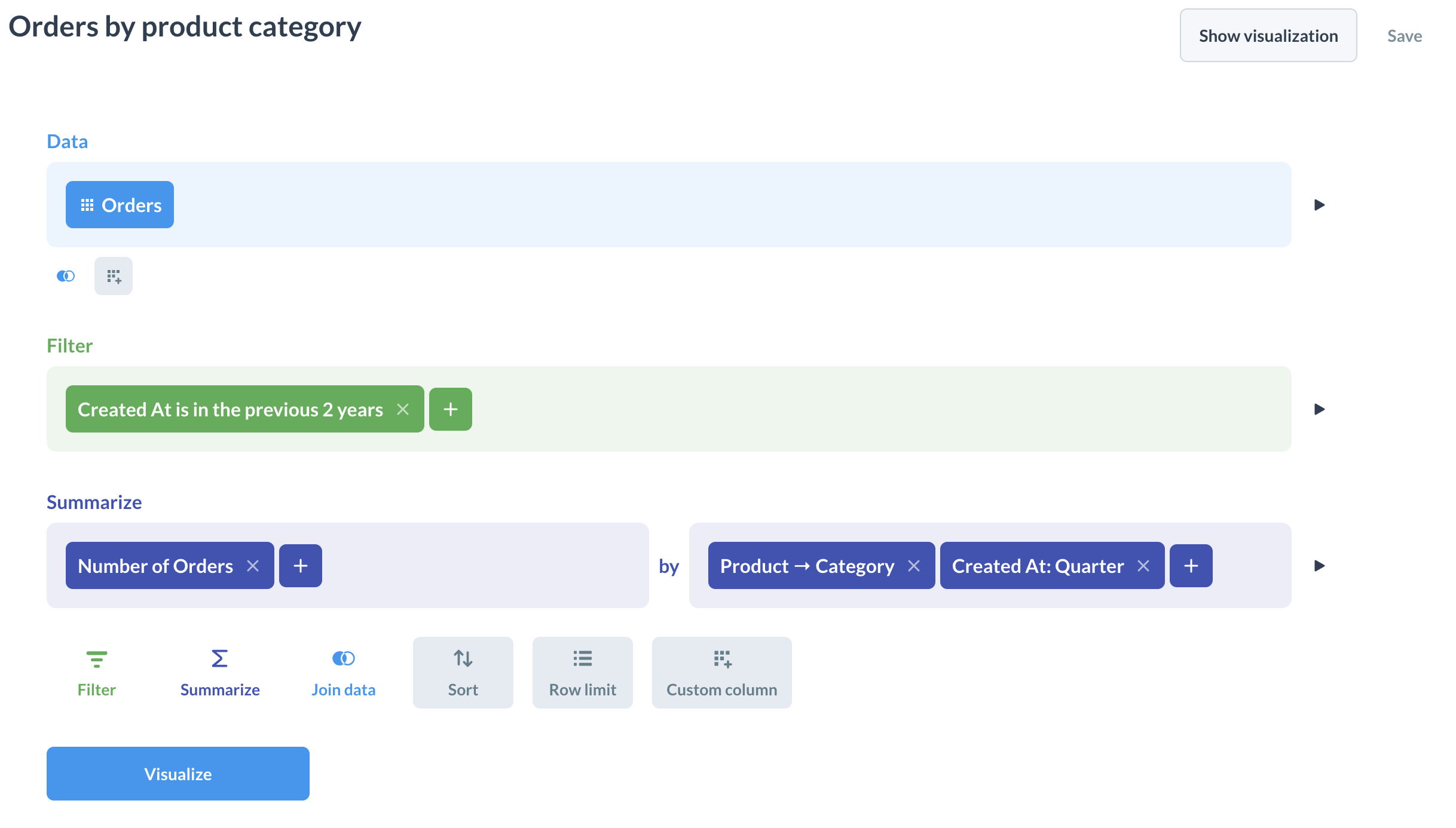

嵌入查询构建器以创建新问题
您可以通过将 questionId="new"
属性传递给 InteractiveQuestion
组件来嵌入查询构建器以创建新问题。您可以使用 children
属性来自定义创建新问题的布局。
import React from "react";
import {
InteractiveQuestion,
MetabaseProvider,
defineMetabaseAuthConfig,
} from "@metabase/embedding-sdk-react";
const authConfig = defineMetabaseAuthConfig({
metabaseInstanceUrl: "https://your-metabase.example.com",
});
export default function App() {
return (
<MetabaseProvider authConfig={authConfig}>
<InteractiveQuestion questionId="new" />
</MetabaseProvider>
);
}
要自定义问题编辑器的布局,请直接使用自定义 children
属性的 InteractiveQuestion
组件。
